Rg6 Cable, Packaging Type : BLACK WHITE

RG6 SPECTIFICAITON

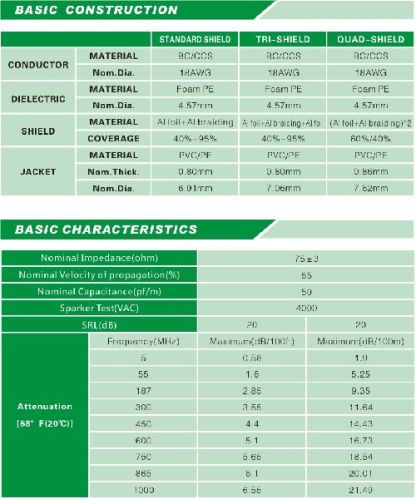

1) Construction

Center Conductor:1.02+0.01mm  Copper clad steel

Dielectric:4.57+0.05mmFoam PE

Shield:AL    Foil

Braid Coverage:80*0.12  AL Braiding  60%

Jacket:6.9mmpvc

Jelly/APDno

2) Characteristics

Sparker Test:4000VAC

Impedance:75+3 Ohm

Capacitance:52.5+3pF/m

Velocity of Propagation:83%

Return Loss:21dB min (5-2300MHz)

3) Attenuation

Attenuation[@68oF. (20oC.)]

Frequency (MHz)Maximum (dB/100 m)

51.9

555.25

21110

25010.82

27011.04

30011.64

33012.26

35012.63

40013.61

45014.43

50015.29

55016.08

60016.73

75018.54

87020.04

100021.49
