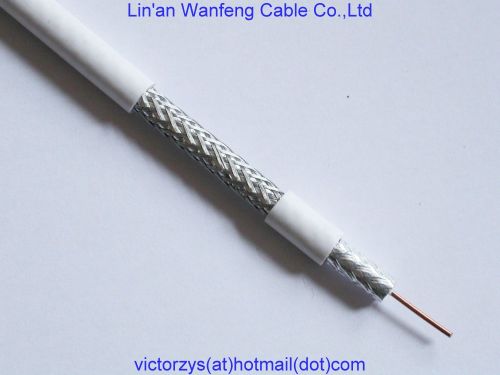

Contact SupplierWe are offering rg6 coaxial cable.
1.02mm bare copper+4.57mm foam pe+al foil+64*0.12mm braiding+6.91mm pvc
impedance(ω) 75±3
velocity of propagation(%) 85
capacitance(pfm) 50
structural return loss(≥db) 20
attenuation [@ 68° f. (20° c)]
frequency(mhz) maximum(db100m)
5 1.9
55 5.25
187 9.35
300 11.64
450 14.43
600 16.73
750 18.34
865 20.01
1000 21.49
remarks
1) center conductor:bc,tc,cca,ccs
2) al-foil:non-bonded al-foil, bonded al-foil,double bonded al-foil,and double
non-bonded al-foil are available
3) braiding wire:al,bc, tc,cca,ccs available
4) braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) braiding net:32,48,64,72,80,96,120,128,144 and more available
6) braiding coverage:between 30-97%
7) pvc jacket of flame retardant,ul available
