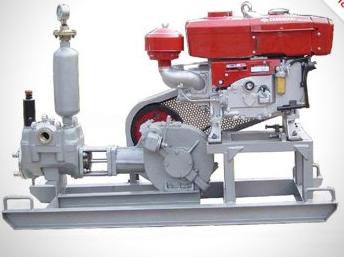

Rg60-40 Mechanical Piston Grouting Pump

We offer rg60-40 mechanical piston grouting pump. Single piston double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
features:
single piston double-acting
gear&vee belt transmission makes this pump high mechanical efficiency and working reliability
integrated valve house and ball valve, together with compact structure
body of pump is made of aluminum casting,low weight is an advantage for transport
technical data:
item 　rg130-20 　rg60-40
work elements single kolbenzylinder double action.spherical valve reversing single kolbenzylinder double action.spherical valve reversing
output 130 l/min 60 l/min
pressure 2 mpa（20bar/290psi） 4 mpa（40bar/580psi）
cylinder dia φ75 mm φ75 mm
piston stroke 85 mm 85 mm
piston speed 180 /min 85 /min
inlet diameter 51 mm 38 mm
outlet diameter 38 mm 32 mm
power unit 5.5 kw(electric) 10hp(diesel) 5.5 kw(electric) 10hp(diesel)
transmission v-belts +gear case v-belts +gear case
chassis skid skid
weight 260 kg 210 kg
dimensions 1400×650×920 mm 1280×485×645 mm
