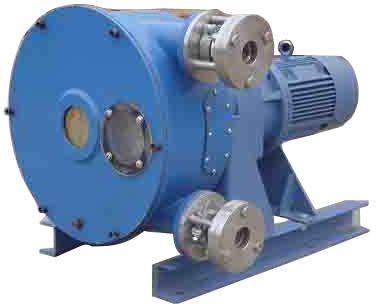

Contact SupplierWe offer rh industrial hose. Risen rh series heavy-duty hose pump is a kind of peristaltic pump, which is suitable for handling aggressive, high viscosity, high density products, such as abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar ,liquid accelerator,etc. And also is used for dosing pump with 1% repeat precision.
Features:
Reversibility
Sealessness and valveness
Abrasion resistance
Self priming with high suction
Peristaltic hose is the only consumption part
Technical data:
Pump Model Output
L/h
Pressure
MPa
Hose ID
mm
Rev.
r/min
Max.ParticleDia.
mm
Max.Suct.Left
m
Motor Power
kW
RH10 60 0.6 10 45 2 2 0.37
RH10B 100 0.6 10 80 2 2 0.37
RH15 210 0.6 15 45 2 2 0.55
RH15B 300 0.6 15 75 2 2 0.55
RH25 800 1.5 25 50 3 3 1.1
RH25B 1300 1.5 25 80 3 3 1.5
RH32 1300 1.5 32 50 3 4 2.2
RH32B 1800 1.5 32 75 3 4 2.2
RH38 2000 1.5 38 40 5 4 2.2
RH38B 2700 1.5 38 55 5 4 3.0
RH38C 3500 1.5 38 70 5 4 4.0
RH50-558 4200 1.5 51 35 6 5 4.0
RH50-558B
5400 1.5 51 45 6 5 5.5
RH50-680 6300 1.5 51 35 6 5 7.5
RH50-680B 8000 1.5 51 45 6 5 7.5
RH65-680 9200 1.2 64 40 8 5 7.5
RH65-680B 12000 1.5 64 45 8 5 11.0
RH65-770 13500 1.2 64 45 8 5 11.0
RH65-770B 16500 1.0 64 55 8 5 11.0
RH76-770 18000 1.0 76 45 10 5 11.0
RH76-770B 22000 1.0 76 55 10 5 15.0
RH76-915 24000 1.0 76 50 10 5 15.0
RH76-915B 28000 1.0 76 40? 10 5 18.0
RH100 33500 1.0 102 35 15 5 18.0
RH100B 42000 0.75 102 45 15 5 18.0
