Ribbon Blendor is very fast and 100% efficient mixer to blend practically any dry powders, from food products to chemicals.
|
Even liquids in small amount can also be mixed in very efficent way.
|
|

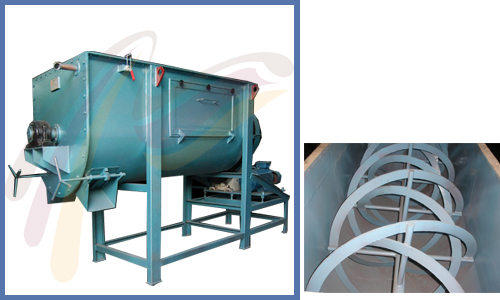

Ribbon Blendor consist of U shape horizontal trough and specially fabricated ribbon agitator.
|
|
Ribbon agitator consist of set of inner and outer blades. The outer blades moves the matertial in one direction while inner blades move the materials in exactly opposite direction.
|
|
The Ribbon Blendor is carefully design to ensure thorough mixing with required CV ( Coefficient of variation ).
|
|
Temperature rise is also minimum which is important when we consider vitamin mixing.
|
|
Discharger get can be manual or pneumatically operated for direct filling in bags or dumping into storagebin.
|
|
Ribbon Blenders can be constructed in mild steel (MS) or Stainless Steel (SS) depending upon material to be blended.
|
|
Ribbon Blenders operates between 20 and 40rpm.
|
|
Fluid coupling can also be used as a option they are useful to start mixer on load in case of sudden electri failures.
|
|
Automatic oil or liquid spraying arrangement can be done.
|
Sr.No. | Model | WORKING CAPACITY IN Ltr |
CAPACITY IN Kg. FOR POULTRY FEEDCONSIDRIS O.6 gm/ce |
HP |
DIMENSIONS L x W x H |
1 | KARB | 250 | 150 Kg. | 2-5 | 1557x915x1672 |
2 | KARB | 500 | 300 Kg. | 3-7.5 | 2100x1065x1780 |
3 | KARB | 750 | 450 Kg. | 3-7.5 | 2325x1166x1910 |
4 | KARB | 875 | 500 Kg. | 5-10 | 2575x1166x1910 |
5 | KARB | 1000 | 600 Kg. | 7.5-12.5 | 283Ox1166x1910 |
6 | KARB | 1250 | 750 Kg. | 7.5-12.5 | 3350x1190x1910 |
7 | KARB | 1500 | 900 Kg. | 10-15 | 3540x1265x1960 |
8 | KARB | 1750 | 1000 Kg. | 10.15 | 3780x1320x1960 |
9 | KARB | 2000 | 1200 Kg. | 12.5-20 | 3935x1360x2065 |
10 | KARB | 2500 | 1500 Kg. | 15-25 | 3940x1480x2280 |
11 | KARB | 3000 | 1800 Kg. | 20-30 | 4060x1570x2370 |
12 | KARB | 3500 | 2100 Kg. | 25-50 | 4135x1670x2425 |
