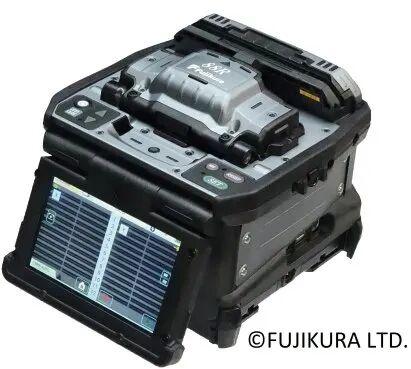

Ribbon Splicing Machine

Listing ID #6679586

3.55 Lakh / Piece

Get Latest Price

MOQ 1 Piece
Usage/ApplicationSplicing
BrandFujikura
Model Name/Number88R
Dimensions146W x 159D x150H (mm)
Supply Type Manufacturer, Exporter, Retailer, Distributor, Trader

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Usage/Application Splicing
Brand Fujikura
Model Name/Number 88R
Dimensions 146W x 159D x150H (mm)
Type Ribbon Fiber
Heating Time Typical 13 sec.
Color Black
Electrode Life Regular
Tension Test Regular


Item		Specification
Fiber alignment method		Self cladding alignment with melting surface tension
Fiber count can be spliced		Up to 12 fiber ribbon
Applicable fiber	Fiber type	SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)
Applicable fiber	Cladding dia.	Approx.125m
Applicable coating	Fiber holder	Coating shape. : Refer to options
Applicable coating	Fiber holder	Cleave length : 10mm
Fiber splice performance	Splice loss	ITU-T G.652 : Avg. 0.05dB
		ITU-T G.651 : Avg. 0.02dB
		ITU-T G.653 : Avg. 0.08dB
		ITU-T G.655 : Avg. 0.08dB
		ITU-T G.657 : Avg. 0.05dB
	Splice time	Typical 11 sec.
Applicable protection sleeve	Sleeve type	Heat shrinkable sleeve
	Sleeve length	Max. 66mm
	Sleeve dia.	Max. 6.0mm before shrinking
Sleeve heat performance	Heat time	Typical 13 sec.
Fiber tensile test force		Approx. 2.0N
Electrode life		Approx. 1,500 splices
Physical description	Dimensions	146W × 159D ×150H (mm)
Physical description	Weight	Approx. 2.6kg including battery
Environmental condition	Temperature	Operate : -10 to 50°C
	Temperature	Storage : -40 to 80 °C
	Humidity	Operate : 0 to 95%RH non-condensing
	Humidity	Storage : 0 to 95%RH non-condensing
	Altitude	Max. 3,700m
AC adaptor	Input	AC100 to 240V, 50/60Hz, Max. 1.5A
Battery pack*1	Type	Rechargeable Lithium Ion
	Output	Approx. DC14.4V / 6,380mAh
	Capacity	Approx. 165 splice and heat cycles
	Temperature	Recharge : 0 to 40°C
	Temperature	Storage : -20 to 30°C
	Battery life	Approx. 500 recharge cycles
Display	LCD monitor	TFT 5 inches with touch screen
	Magnification	88R1212 : Approx. 20X : 12 ribbon to 60X : single
	Magnification	88R124 : Approx. 60X
Illumination	V-grooves	LED lamp
Interface	PC	USB2.0 Mini B type
	External LED lamp	USB2.0 A type Approx. DC5V, 500mA
		Mini DIN 6pin DC12V, Max. 1A
	Wireless *2	Bluetooth 4.1 LE
Data storage	Splice mode	100 splice modes
	Heat mode
