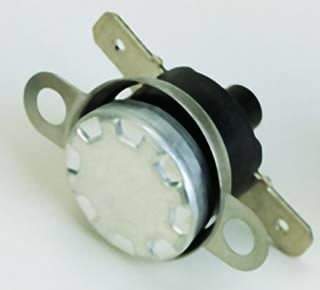

0---250℃ Rice Cooker Thermostat Ksd301

MOQ1000 Piece(s)
Temperature Range0---250℃
max current15A
max voltage250V
tolerance±3C&±5C&±10C
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

Temperature Range0---250℃
body meratial plastic or cerma
max current15A
max voltage250V
life timeover 100000times
tolerance±3C&±5C&±10C
unit weight7.6g&4.5g
contact typeNC/NO

Electrical Parameters: 1)cqc,Vde,Ul,Cul Ac250v 50~60hz 5a/10a/15a (resistance Load)
2)ul Ac125v 50hz 15a (resistance Load)
2.action Temperature Range: 45~160℃ (optional); Temperature Accuracy: ±2 ±3 ±5 ±10℃
3.recovery and Action Temperature Difference: 8~100℃ (optional)
4.connection Method: Insert the Terminal 250# (bending Angle: 0~90° Optional); Insert the Terminal 187# (bending Angle: 0~90° Optional; Thickness: 0.5, 0.8mm Optional)
5.lifespan: ≥ 100,000 Times
6.electrical Strength: No Spark or Breakdown for 1min At Ac 50hz 1800v
7.contact Resistance: ≤50mω
8.insulation Resistance: ≤100mω
junction Method: Constant-closed: the Contact Point Disconnects When Temperature Rises; and Contact Point Connects When Temperature Falls;
constant-opened: the Contact Point Connects When Temperature Rises; and Contact Point Disconnects When Temperature Falls.
10.casing Protective Class: Ip00
11.grounding Method: Connection is Made Between the Metal Casing of the Temperature Controller and the Metal Part of the Grounding Device.
12.installation Method: Installed for Ki031 Series: General Moving Ring, Mini Round Moving Ring, Flat Moving Ring General Aluminum Cover with Mounting Hole, Extra Length Aluminum Cover with Mounting Hole
