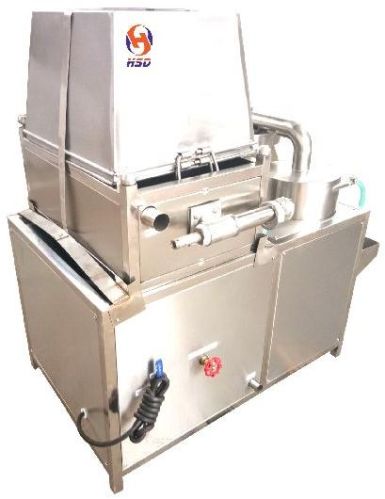

SS Rice Washing Machine, Brand Name : HSD

Working principle:
First connected to water after starting power, adjust pressure of discharge stone, put the rice into rice bucket, through the separator combination in different water pressure, stones, mud and other hard impurities discharged from the sand separator; chaff and other debris discharged from the float separator; after washing, rice access into the basket by rice tube, rice washing work completed. (continuous work)
Technical parameters:
A) elutriation capacity: 500kg/h
B) the stone expulsion rate: 95%
C) pipe pump: 25SG6.5 - 30 Q=6.5 cubic meters, /h head =30m N=1.5kw
D) rated voltage: 380V 3~
E) rated frequency: 50Hz
F) work pressure: 0.23 - 0.28MPa
G) stone drain water pressure: 0.08 - 0.10 MPa
H) stone row tube diameter: more than 11mm
I) water consumption: 0.0065 cubic meters /kg
J) waterproof rating: IPX1
