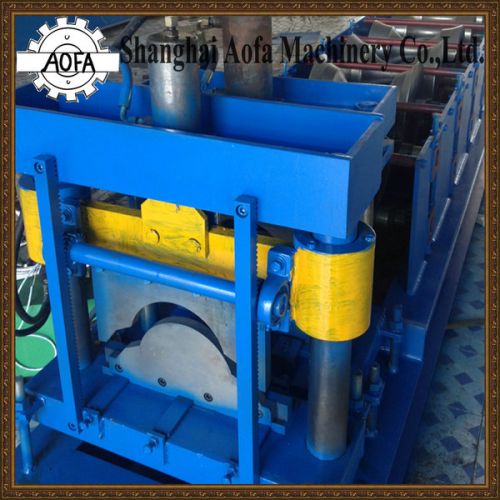

Ridge Cap Roll Forming Machine, Brand Name : AOFA

We are offering ridge cap roll forming machine.
1.
de-coiler
1 set
2.
roll forming machine
1 set
3.
pressiug device
1 set
4.
hydraulic cutting device
1 set
5.
plc control box
1 set
6.
output table
1 set
technical description:
effective width 321mm
main moter power 3kw
hydraulic station power 3kw
material thickness 0.8mm-1.2mm
roller station 13steps
yield strength 32mpa
diameter of principal axis 70mm
material of roller 45# steel polished and coated with chrome hrc55-60°
shaft material high grade no.45 steel after treatment
blade material cr12 steel after treatment
processing speed 8-12m/min
control system plc frequency control system with touch screen
length of tolerance ≤2.0mm
