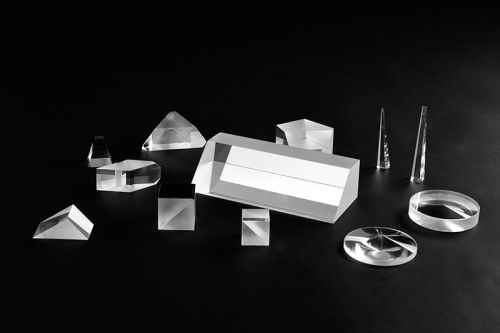

Contact SupplierRight angle prism
right angle prism may be used as a 90 degree reflector or 180 degree retroreflector. The prism deflect, deviate and rotate beams of light as well as dispersing their wavelengths. They usually used for beam deviation or as substrates for beam splitters. We also provide other optical prism such as roof prism.
Capacity:
material: optical glass, fused silica, sapphire.
Dimension: 1-250 mm
dimension tolerance: +0-0.1 mm
surface flatness: λ10@632.8 nm
surface quality: 10-5Â
angular accuracy: 5 second
coating: uncoated, ar, hr, beamsplitter ect.
Specification:
material bk7 grade a optical glass or uv fused silica
dimension tolerance +0.0, -0.2Â mm
clear aperture >80%
surface quality 60-40 scratch and dig
90° deviation 3', 1' or 30"
flatness λ2 @632.8 nm
protective bevel 0.25 mm x 45°
 Â
bk7 right angle prism standard products:
size (mm) 3 min. Deviation 1 min. Deviation 30 sec. Deviation
part no. part no. part no.
A=b=c=3.2 tap101 tap201 tap301
a=b=c=4.0 tap102 tap202 tap302
a=b=c=10.0 tap103 tap203 tap303
a=b=c=12.7 tap104 tap204 tap304
note: other sizes, material and coatings are available upon request.
