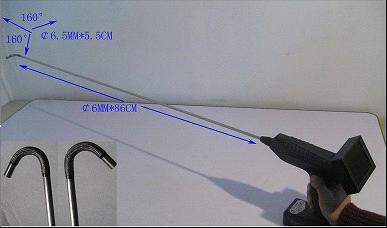

Contact SupplierThe Rigid Color Video borescope has diameter 5.5-8mm, lengh 20-100cm, oil/waterproof,illuminated crush-resistant Endoflex vertebrae core, and tough polymer outer with stainless covered tip bending section. The borescopes has 2-way remote end tip with >150°left/right articulation. A full color video camera ship is connected to the tip, and the image can be viewed on the color LCD monitor supplied.
WS-PVZ-series borescope are new video borescope. It includes video camera,LCD display,insert tube, light source,software,battery and so on.
It is powered by the Rechargeable battery, you can adjust the brightness. The consecutive working time is 8 hours.
SPECIFICATION
ITEM TECHNICAL INDEX
Control
Parts Sensor 1/10â?? Remote Head Camera System
Image Color
Head diameter Ф5.5mm;6.5mm;8mm(Optional)
Working length 20cm-100cm(Optional)
Angle of view 55° or 100°
Viewing Direction Forward view/Side view(Optional)
Bending angle 2 ways 160°�160°
Light source Adjustable Super Bright LED Lamp
White balance Auto/Manu
Insert Tube Rigid
Output AV
Display 3.5'' TFT LCD
Display corner 0°- 90°
TV line 320Lines
Battery Li-ion
Light Source LED
Working
Area Causticity YES
Working Temperature -20â??~60â??
Humidity 5%â??80%
Waterproof YES
