Rigid Frame Stranding Machine

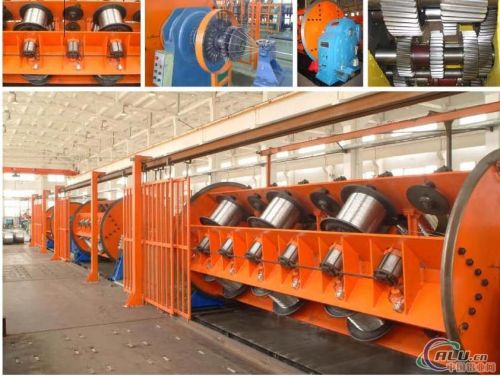

We offer rigid frame stranding machine. Jcjx-kj630 type rigid frame stranding machine
main feature:
1:the machine is suitable for stranding long length and section bare aluminumcopper , aluminum alloy, aluminum cable steel reinforcing wires to product the following power cables. Sector shapped conductors,round compacted ,single core prespiralled.
2:reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more,the equipment has high-powered, high speed.
3:ir is driven by 36-stage gear-box,the tow wheels of double wheel capstan are overhung position supported on shafts. One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force reaches 15t . Each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.
Addition:
this machine’s tightening device and pneumatic means all operated by manual
it use double driving, double traction, one wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out
the gear box’s gear using hard-toothed surface grinding, so it has high precision, the noise is less than 80db
technical parameter:
machine type
jcjx-kj630
stranded single wire dia.(mm)
copper
1.5~4.5
aluminum alloy
1.8~5.0
aluminum
1.8~5.0
max .cage rotate speed(rpm)
6b
174
12b
156
18b
125
24b
99
30b
77
central pay-off bobbin size
pn630~2000
pay-off bobbin in cage
pnd630
take-up bobbin size
pn1600~pn3150
control type
plc+ touch screen
