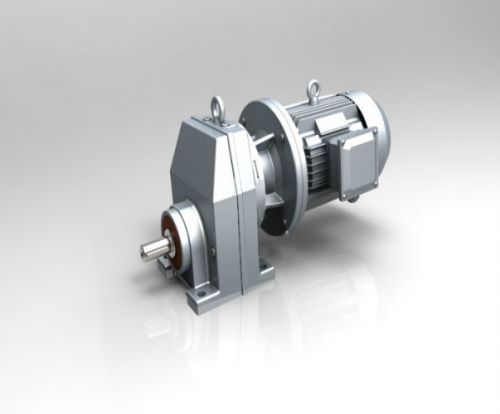

Rigid Tooth Flank Helical Gear Speed Reducer

1.    The Product Description  Helical bevel speedreducer is the latest product line developed by Helical Gear Reducers. Allhousings are made from gray cast iron EN-GJL250. R Series Speed Reducer provideshigh performance sensitivity and sustainability. Every surface can be mountedseamlessly, thanks to the universal body. Bevel Helical GearReducer are made of 8620 material and they are heat treated and precise profilegrounded and all the gears are hardened and grounded with 6 quality. Toincrease the load carring capacity of gears various profile correction aremade. Motors - gearbox connections are at IEC B5-B14 standard in extruderseries gearboxes. 2.    The FeaturesOf JIAYOU R Series Foot Mounted Speed Reducer 1.    HighlyStandard Modular Designed 2.    Qualitymaterial ensures the product reliability 3.    HighStrength,Compact Dimension 4.    LongService Life 5.    LowNoise 6.    HighEfficiency 7.    Largeradial loading ability 8.    Axialload ability of up to 5% of radial load   R Series Helical Gear Reducer Model R17~R177/RF17~RF177/RX57~137 Power 0.12~160KW Output Speed(r/min) 0.05~809 Output Torque(N.m) Top to 36000 Ratio 1.30~21545 Weight 5~1250KGS Standard voltage and frequency 380V&50HZ Packaging detail Wooden case; customized packing is acceptable 3.   TheApplication Of JIAYOU R Series Sped Reducer.
