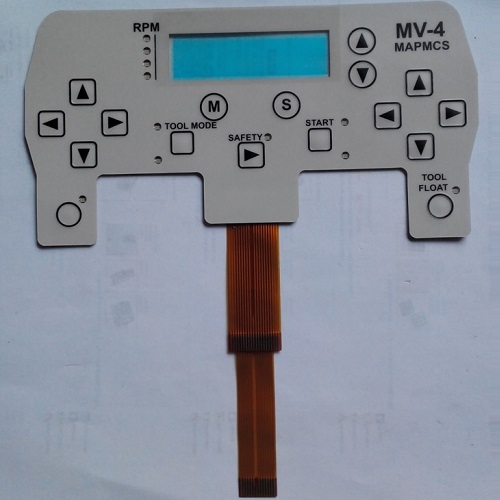

Rim Embossing Tactile FPC Circuit Membrane Switch

A membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch. Membrane switch is very thin and soft. The touch surface material usually is PET or PC. The circuit can be PET, FPC or even PCB. Membrane switches are user-equipment interface utilities that allow for the communication of commands from users to electronic devices. PRODUCTION DESCRIPTION> Construction: A membrane switch typically has 6 or more or less layers. The top layer of a membrane switch is the graphic overlay interface between the user and the machine. The other critical layer is a the circuit layer. It can also be PET, FPC or PCB. All the layers are normally assembled using pressure-sensitive adhesives. Contact between two traces can be made through a printed shorting pad or through a metal dome that stands on legs. > Membrane Keypad Structure1) 4 layers structure: Graphic overlay + Spacer + Circuit(can be PET circuit or FPC circuit) + Back Adhesive2) 6 layers structure: Graphic overlay + Spacer: Dome Retainer + Spacer + Circuit(can be PET circuit or FPC circuit) + Back Adhesive;3) Other Structure     3.1) Overlay + Rubber Adhesive + Rubber Keypad + Rubber Adhesive + Retainer + Spacer + Circuit + Back Adhesive;     3.2) Overlay + Spacer + Retainer + PCB Circuit;And also there are many other kinds of structures for the interface keypads structure.
