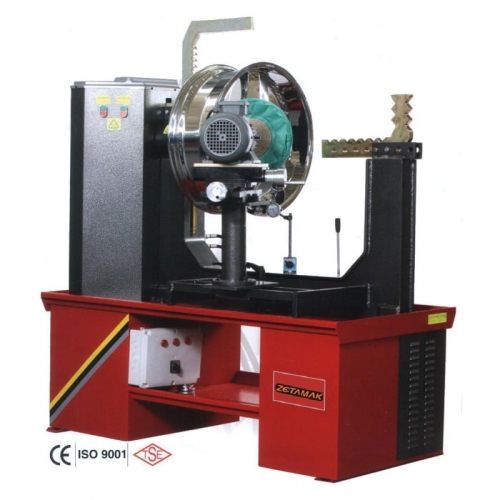

Rim Straightening Machine, Brand Name : ZETAMAK

We are offering rim straightening machine.
Dimensions (packing)
height 1520 mm
length 1450 mm
width 850 mm
net weight 400 kg
motor specifications
mechanic motor 0,75 kw, 1400 rpm, 1hp, 3 phase - single phase, 220v - 380 v
hydraulic motor 0,75 kw, 900 rpm, 1 hp, 3 phase - single phase, 220v - 380 v
rim polish motor 2,2kw, 2800rpm, 3hp, 3 phase - single phase, 220v - 380 v
hydraulic piston power
total pressure = πr2 x 160 (working pressure bar)
total pressure = 3,14* (3,15 x 3,15) = 31,156kg
total pressure = 31,156 x 160 = 4 984,96kg
diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
as you have seen above formula you can have 5 tons of total pressure while working on our rsm1430 machines.
standard accessories list
1. 18 pcs rim attaching center
2. 1 pcs (mihengir) metal pointer
3. 6 pcs press tips
4. 3 pcs support axis for press tips
5. 1 pcs lever
6. 1 pcs lathe pen
7. 6 pcs upper support
8. 1 pcs lower support
9. 4 pcs support pins
10. Flange nuts and bolts
