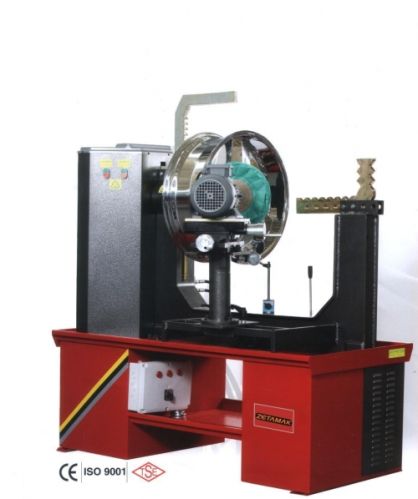

Rim Straightening Machine

We are offering rss1430 rim straightening & shining machine.
technical specifications
dimensions (packing)
height 1620 mm
length 1440 mm
width 800 mm
net weight 410 kg
motor specifications
mechanic motor 0,75 kw , 1400 rpm , 1 hp,
3 phase - single phase, 380 v - 220 v – 7,3 ampere
hydraulic motor 0,75 kw 900 rpm, 1 hp,
3 phase - single phase, 380 v - 220 v- 8,7 ampere
shining motor 2,2 kw 2800 rpm, 3 hp,
3 phase - single phase, 380 v - 220 v - 21 ampere
sound level 45 db
hydraulic piston power
total pressure = πr2 x 160 (working pressure bar)
total pressure = 3,14* (3,15 x 3,15) = 31,156kg
total pressure = 31,156 x 160 = 4 984,96kg
diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
as you have seen above formula you can have 5 tons of total pressure in pistons while working on our rim straightening and shining machines.
