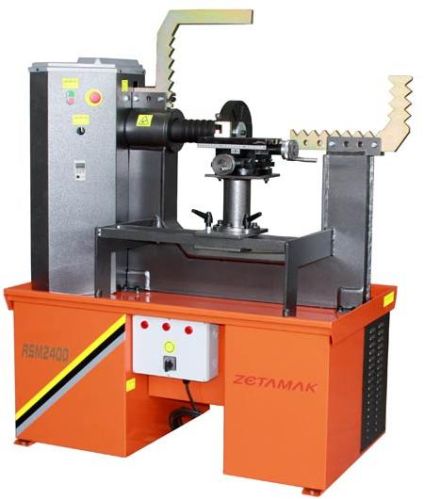

Rim Straightening Machine With Lathe

We are offering rsm2400 rim straightening machine with lathe.
technical specifications
dimensions
height 1420 mm
length 1200 mm
width 800 mm
gross weight 320 kg
motor specifications
mechanic motor 0,55 kw, 1400 rpm, 0,75hp, 7.3 ampere,
3 phase - single phase, 220v - 380 v
hydraulic motor 0,55 kw 900 rpm, 0,75hp, 8.7 ampere,
3 phase - single phase, 220v - 380 v
sound level 45 db
hydraulic piston power
total pressure = πr2 x 160 (working pressure bar)
total pressure = 3,14* (3,15 x 3,15) = 31,156kg
total pressure = 31,156 x 160 = 4 984,96kg
diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our rsm2200 rsm2400rsm2600 machines.
standard accessories list
1. 18 pcs rim attaching center
2. 1 pcs (mihengir) metal pointer
3. 6 pcs press tips
4. 3 pcs support axis for press tips
5. 1 pcs lever
6. 1 pcs lathe pen
7. 1 pcs upper support
8. 1 pcs lower support
9. 4 pcs support pins
10. Flange nuts and bolts
