Confectionery Compression Machine, For Chemical, Salt, Chlorine, Food, Ayurvedic, Neutraceutical, Ceramic

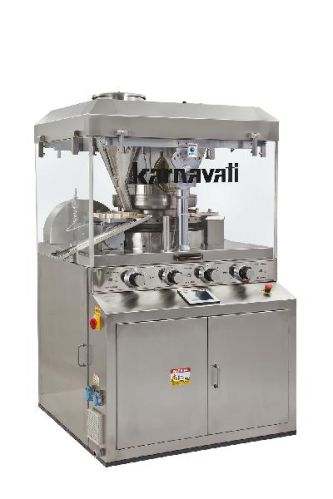

Unik I fc - double rotary tablet press
unik – I fc model with rimek brand from kel (karnavati engineering ltd.) is a sturdy tablet press, built on central pillar of strong square shape casted body. The robust construction of the machine ensures smooth running even at a high speed (max. Turret rpm 50) unik – I fc is available in ‘d’ or ‘b’ or ‘bb’ tooling with 10 ton & 6.5 ton.
the precise speed control is possible by ac inverter drive instead of conventional variable speed pulley. The machine is covered with ss guards at bottom and acrylic guards at the top. It is equipped with all normal safety precautions to make it an operator friendly machine. The turret is made from special graded casting with two-piece design. As a special feature, the machine is equipped with auto lubrication with timer & metering cartridges. Lower punch seals are supplied as standard feature.
Salient features:
 main motor with acvf
 turret made up of s.g. Iron with elnp
 safety interlocking for upper & lower guard.
 lower punch seals
 auto lubrication
 gravity feeding system
 plc with mmi control panel
 front control – tablet parameters viz. Tablet thickness, depth of fill etc.
 ss 316 contact parts
