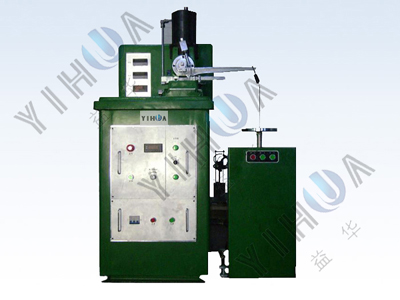

Ring Block Wear Testing Machine, Brand Name : Yihua

We are offering ring block wear testing machine.
Brief introduction:
this machine is mainly applied for simulating evaluation for kinds of lubricant, grease’s extreme compression capacity and anti-confusion capacity. It can also be used for performance study of anti-friction capacity of aviation kerosene and capacities of all sorts of paint coating, metal and non-metal materials.
standards:
this machine conforms to astm d 2782 standard test method for measurement of extreme-pressure properties of lubricating fluids (timken method) and astm g77 standard test method for ranking resistance of materials to sliding wear using block-on ring wear test.
technical specification:
specification mrh-5
max. Test force 5000 n
spindle speed range 1~1500 rmin
test force leverage 10:1
staff gauge scale 1.5n100mm
temperature range of test oil room temperature~100°c
test force speed 8.92~13.33
standard testing ring’s dimension(mm) φ49.22x13.06
standard testing block’s dimension(mm) 12.32x19.05
overall dimension
(l*w*h) mainframe 1140x660x1620mm
inflicting force installation 460x460x900mm.
