Ring Lock System

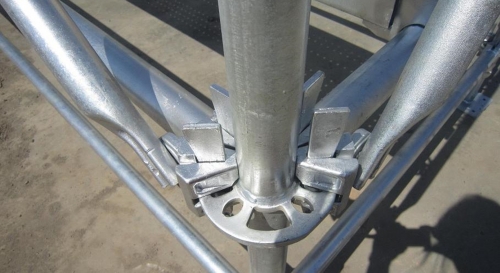

Ring lock system is connection consists of standards with rosettes every 0.5mm And horizontal members with a cast end captive wedge (horizontal / Transom) When connected together the ledger ends and rosettes create a very stronger Connection .it is this connection the transmits force throughout the scaffold structures The ring lock rosette has been manufactured to have 8 holes, 4 of which are small And 4 are large. The smaller holes represent the 90 degree angle at which Horizontal And transom are fitted. the large hole accommodate the diagonal bay brace and horizontal at variable angles The rosette also allows for the horizontal to be connected into the large holes which gives Up to 15 degree of move ability
