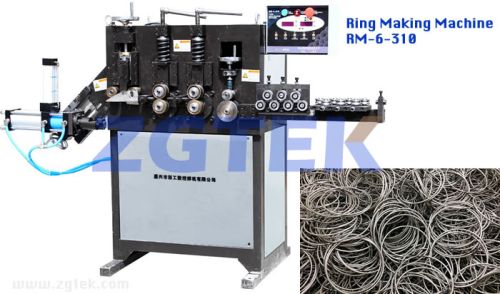

Ring Making Machine

Specification
model: rm-6-310
input voltage: 220v (2-phase) or customized
power frequency: 50hz60hz
rated power: 2kva
ring diameter: 70-350mm
wire thickness: 2.8-5mm
ring diameter tolerance: 0.16mm
throughput: about 2200pcshour(for ring diameter 150mm)
cooling method: natural cooling
air flow required: 250lmin
weight: about 300kg
features
high precision: intelligent "s" shape speed curve, the encoder and the motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines.
High stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts, never gets less precise due to wear-out.
Easy operation: ring size is adjusted by turning the wheel, much easier than traditional mechanical or hydraulic machines.
User friendly ui, the counter always shows the amount of rings formed.
