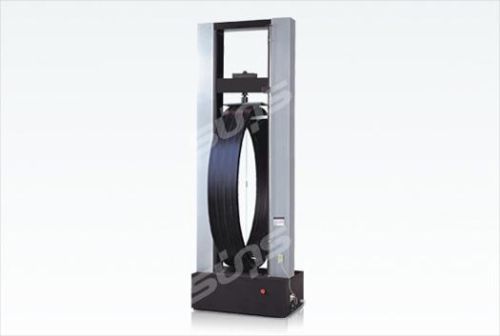

    Ring Pipe Stifness Tester

    Ring Pipe Stifness Tester

    Get Latest Price
    • Capacity6,750lbf, 30KN
    • AccuracyGrade 1
    • Weight1545lb (700kg)
    • Power supply110/220VAC 50/60Hz 2kVA
    • Width of specimen27.5" (700mm)
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    Send Enquiry

    Company Information

    Dushrath
    location Dombivli, Thane, Maharashtra
    View Number
    • calendar Member Since 14 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Power supply110/220VAC 50/60Hz 2kVA
    • Weight1545lb (700kg)
    • Width of specimen27.5" (700mm)
    • AccuracyGrade 1
    • Capacity6,750lbf, 30KN

    • Load measurement range -0.2 - 100% FS
    • Load Indicating accuracy - within +- 1%
    • Displacement indicating accuracy - Within +- 1%
    • Displacement resolution - 0.04 thou (1um)
    • Pipe ID measurement range accuracy - 0.0004" (0.01mm)
    • Deflection measuring range - 0 - 100%FS
    • Testing speeding - 0.02-7.9in./min (0.5 - 200mm/min)
    • Error of Speed -within +- 1%
    • Testing method - Ring stiffness ISO 9969 and eq.
    • Operating method - PC control
    • Max. compressing space- 118" (3000mm)
    • Dimension DxWxH - 26"(650mm) × 54" (1360mm) x 170" (4300mm)
