Rivetless Riveting Machine, Power : 0.05kw

We offer rivetless riveting machine.

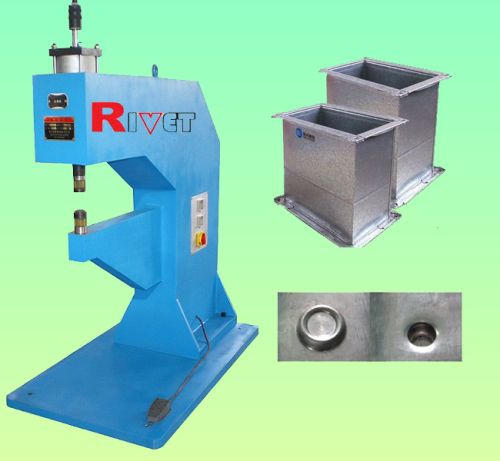

Wmz-5 (vertical rivetless riveting machine)
characteristics:
■processed point firmly
■joint 2 pieces of metal sheet without rivet
■protect surface plating and painting available
■forming rond or rectangle shape available
■processed area has no stress
■allowed to have mezzanine and multi-layer conjunction
■copper , aluminums, steel, zinc are all unlimited
■equipped with pre-pressure device，overcoming distort badly.
■desktop, vertical and cantilever style as optional rivetless machine can fully replace of punch joint to the metal sheet. The rivetless riveting process are extensively used in automobile, light work, precise machine, electric appliances and hardware etc: such as the top-window of car, instrument board, mask of engine, humper, radiator, seat, window system of car, silencer, the door of refrigerator, the hull body of washer, the hull body of fan, copy machine, the hull body of computer and dentist's machine outer shell etc.
specification of model:wmz-5
▲max.pressure 50kn
▲stroke 75mm
▲compulsive stroke 5mm
▲frequencymin 14-25
▲thicknessgalvanized sheet 3mm (max.)
▲throat depth 200mm
▲power
