Contact SupplierWe are offering rivetless riveting machines.

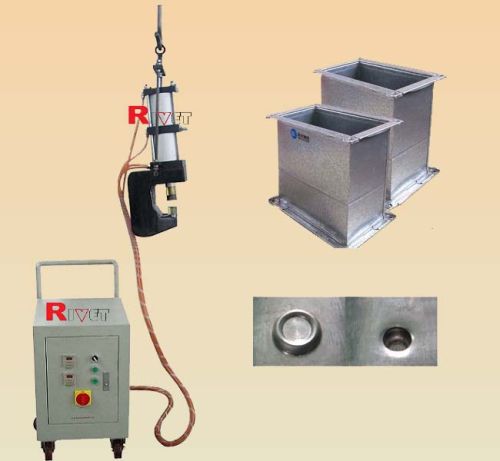

Xwmz-8(portable rivetless riveting machine)
characteristics:
a.portable style (hanging structure)
b.processing from different directions
c.suitable for connect metal sheet thickness less than 3mm
d.pressure display with stepless regulator
e.can change different "c"-gun
f.any direction process available
g.equipped with short circuit protection
h.never leakage and almost no maintenance air boosting cylinder is a kind of portable riveting machine for processing ventilation engineering and duct flanges, it has characteristics of firmly after processing and flexible operation, noice free and easy maintenance etc. specification of xwmz-5
1.max.pressure 50kn
2.cylinder stroke 75mm
3.compulsive stroke 5mm
4.frequencymin 14-25
5.thicknessgalvanized sheet 2 mm
6.throat depth 100mm
7.power 0.05kw
8.rated air comsumption 0.07mâ³min
9.air source 5-6kgfcmâ²
10.pressure adjusting stepless regulation
11.aerosol lubrication yes
12.hanging system balancer yes
13.control box size and weight 400mmx580mmx820 and 25kg
