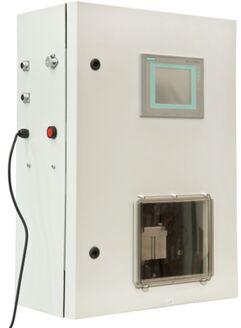

RizonSDI Automatic On-line SDI Monitor

Rizonsdiâ® automatic on-line sdi monitor, an online control system, is specially designed for continuous and automatic desalination process and other water treatment. Used for critical water quality monitoring, it achieves precise control by safe and economical operations. It replaces the manual, error prone, conventional procedure with an automatic, precise and infallible routine
application
� ro system on-line testing
� sea water desalination
� common water treatment
� large scale plants that unattended operation is required
features:
the system sets a measuring point ,where 2~4 point is optional as needed measuring 1~4-chanel water quality.
A complete self-contained system meant for unattended operation
easy on-site management and reduced labor costs
1unit rizonsdi â® monitor =4 unit common sdi monitor
no need for stopwatch or measuring glass
automatic transport of filter paper after each measurement for a total of 80~100 measurements out of one paper roll
significantly reducing labor cost
avoiding manual reading errors
with extensive reliability and with advanced fault analysis and warning
real-time monitoring and display the sdi value,functions, and fault detection by lcd
rugged, spray proof (ip 53) self-contained, wall mountable system
analogue output (4~20 ma) for remote reading of sdi value
superior anti-interference ability by power-down protection and digital filtration technique
alarms for temperature, abnormal pressure of air supply, membrane supplement and sdi over-limit
print testing results by connecting external equipment
booster pump is supplied if inlet pressure is less then 35 psi
remote transmission of signal meets the automation requirements of large-scale water treatment plants.
