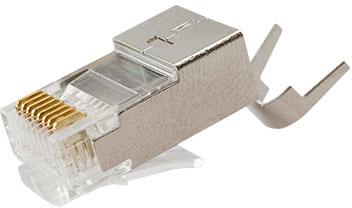

RJ45 Plugs & Couplers, Model Number : 106A

Specifications
1. Electrical:
2. Mechanical:
UL APPLICATIONS: 250 VOLTS AC MAX., AT 2 AMPS
DIELECTRIC WITHSTANDING VOLTAGE: 500 VOLTS AC.
INSULATION RESISTANCE: 100M
TERMINATION: RESISTANCE 20m MAX AFTER
ENVIRONMENTAL TESTING
CABLE-TO-PLUG TENSILE STRENGTH: 20POUND MIN.
DURABILITY: 350 MATING CYCLES
3. Material & Finish:
HOUSING: POLYCARBONATE, UL94V-2 OR UL94V-0
COLOR: TRANSPARENT OR OTHER COLOR ARE AVAILABLE
CONTACT BLADE: COPPER ALLOY
CONDUCTOR: STRANDED & SOLID WIRE 23 AWG, 24 AWG
GOLD PLATING: 50u”, ARE AVAILABLE
accommodates Cable O.D. of 8mm (.315 inches)
4. Package:
100PCSBAG - 25BAGCARTON
CARTON SIZE: 42CMx42CMx25CM
N.W.: 7KG
G.W.: 8Kg
