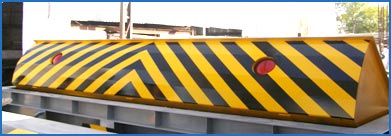

Road Blocker

Road Blockers are used for blocking the roads by restricting the entry of vehicles of all heavy and light weight vehicles. We manufacture, supply and export strong and sturdy Road Blocker. These Road Blockers are used to block heavy vehicles traveling at the speed of 40 Km/hr. Specifications (3-6M) :

• Tensile strength of structural steel components : 490 – 600 N/mm2
• Drive Unit Electro : Hydraulic / Electromechanical
• Wall thickness of structural components : 6 mm
• Blocking height above road level : 750-1000 mm
• Electric motor capacity : Approx. 3.0-7.5kW, 3 phase, 50/60 Hz
• Static impact load : 600 KN
• Surface protection : Tri-Protected layers in accordance with special coating (zinc plus 2 layers of plastic coating).
• Wheel load : 100 Ton vertically
• Hydraulic : Castrol EP 68 HYSPIN
• Operating Temperature : - 5^oC to +55^oC
• Operating time Raising : 4-5 sec., lowering 3-4 sec.
• Power failure/emergency : operation By integrated hydraulic hand pump
• The paint used will be anti-corrosive and luminous for night and bad weather.
• Electric controls Steel or glass-fiber reinforced cabinet, IP 65 Color Pattern Front of blocking segment will be of different and distinct color pattern as decided by owner.
• Material of Construction : Engineered Structural Steel for high-impact.
• Integration: can be done with any Surveillance & Access Control System

• Long term Corrosion Protection
• High emergency impacts
• All Structural component is made up of steel with high tensile strength
• Fast Operating Period
• Accumulator for emergency operation Blocking Segment with Hydraulic locking
• All Electronics Parts CE Certify/Tasted
• In Built Warning Lights for Access Control
• Hand pump for Emergency Operation in case of power failure
• Powerful Electro-Hydraulic Drives and Control
• Induction Loops / Safety Loop
