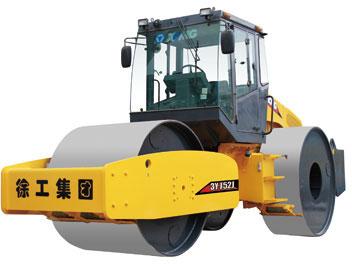

Contact Supplierwe offer Road Roller.
Model Unit 3Y152J
Operation weight kg 12000
Max. operation weight kg 15000
Rear wheel max. static load N/cm 1029
Travel speed km/h
Speed I   3.08
Speed II   5.36
Speed III   12.01
Reverse speed I   3.12
Reverse speed II   5.43
Theoretical gradeability % 20
Min. external turning radius mm 6000
Min. ground clearance mm 488
Compaction width mm 2120
Roller overlap amount mm 100
Engine model   YC4D85Z-T20
Type   Water cooling
Max. power @2200 r/min kw 60
Overall length mm 6224
Overall width mm 2120
Overall height mm 3297
Hydraulic oil tank capacity L 70
Diesel oil tank capacity L 130
Engine oil consumption g.kW/h 225
