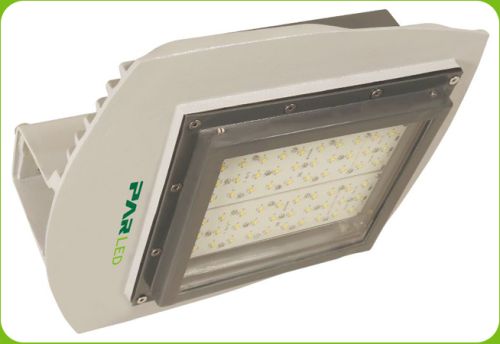

ROAD STAR STREET LIGHTS

Get Latest Price

upto 6.5 kVAluminium housing finished by Grey coating
Optical lens give rectangular light spot with Uniform light distributionIntegrated (Constant current driver)
12Watt to 215Watt 130 lm/W
Road StarPLSL (501/502/503/504)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Par Electrical Industries

Umbergaon, Valsad, Gujarat

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

> 0.95 Suitable for pole diameter upto 60mm
Optical lens give rectangular light spot with Uniform light distributionIntegrated (Constant current driver)
3500K, 4500K, 6500K> 80
upto 6.5 kVAluminium housing finished by Grey coating
12Watt to 215Watt 130 lm/W
Road StarPLSL (501/502/503/504)
IP65180 - 270V AC - 50Hz
Yes - 1m50, 000 hrs.

Roadstar was created to help those responsible for lighting our world succeeds in their energy conservation goals. Roadstar offers an affordable LED road lighting solution for both residential and major road applications. It offers 6 housing sizes and a range of beam optics to fully cater to different road configurations and conditions. It is designed to achieve better light uniformity and maximum spacing between poles, while ensuring sufficient light on the road. Its die-cast aluminium housing excellent thermal management and resistance to the elements, makes the Roadstar ensures long lifetime, reliability and offers significant energy savings when compared with conventional lamp systems.

Features and Benefits :

Up to 50% energy savings with full compliance to road lighting safety standards.
Beautifully designed housing to suit any city centre and provide a designer feel.
Maintain the "Zero Air Gap" between MCPCB and aluminum modules for fastest heat dissipation.
Multiple lumen packages and optics to suit most roadway applications.
Superior W/m2 performance delivered through different optics for greater flexibility to fit different road applications.
High quality cool and neutral white light with high colour consistency.
Vibration, dust and heat resistant.
World Class, approbated quality components (LEDs / Driver / etc.)
Low maintenance cost with no need for internal cleaning, resulting in a lower total cost of ownership.
Lifetime of over 50, 000 hours.

Installation

Suitable for external pole dia. 40 to 60mm

Accessories & Controls :

In-built integrated electronic LED driver

Product Code	Ordering Code	System Wattage(W)	Rated Voltage (V)	Mains Current (A)
PLSL 501/12	PLSL 501/10/350	12	240	0.06
PLSL 501/24	PLSL 501/20/350	24 (25)	240	0.12
PLSL 501/36	PLSL 501/30/350	36 (40)	240	0.18
PLSL 501 / 48	PLSL 501 / 40 / 350	48 (50)	240	0.23
PLSL 501 / 72	PLSL 501 / 60 / 350	72 (75)	240	0.34
PLSL 502 / 36	PLSL 502 / 20 / 525	36 (40)	240	0.18
PLSL 502 / 72	PLSL 502 / 40 / 525	72 (75)	240	0.34
PLSL 503 / 48	PLSL 503 / 30 / 465	48 (50)	240	0.23
PLSL 503 / 96	PLSL 503 / 60 / 465	96 (100)	240	0.46
PLSL 503 / 145	PLSL 503 / 90 / 465	145 (150)	240	0.67
PLSL 504 / 48	PLSL 504 / 20 / 700	48 (50)	240	0.23
PLSL 504 / 72	PLSL 504 / 30 / 700	72 (75)	240	0.34
PLSL 504 / 96	PLSL 504 / 40 / 700	96 (100)	240	0.46
PLSL 504 / 145	PLSL 504 / 60 / 700	145 (150)	240	0.67
PLSL 504 / 215	PLSL 504 / 90 / 700	215 (225)	240	1.03
