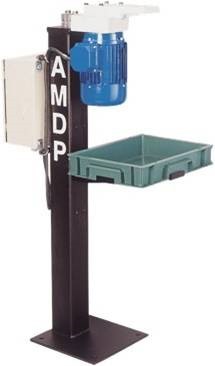

Robotic Tip Dresser

Descriptions :
These dressers are mounted on a stand of a fixed height or of an adjustable height. They are made of :

• 1 electric motor which drives the cutter in rotation
• 1 dressing head which bears and drives the cutter
• 1 electric control unit
• 1 cutter rotation controller
• 1 swarf bin of adjustable height

• Fast mounting and dismounting of the cutter on the dresser
• Easy to integrate
• Adjustable head every 90°
• Very compact dressing head, which makes it possible to dress all types of guns
• Adaptable and flexible product for each application
• Recommended pressure of the gun on the cutter
• 80 to 250 daN depending on the type of gun and electrodes

Options

• Cutter rotation controller
• Gun current controller
• Gun force controller
• Optical « good dressing » controller
• Spring loaded head
• Swarf recuperation system
