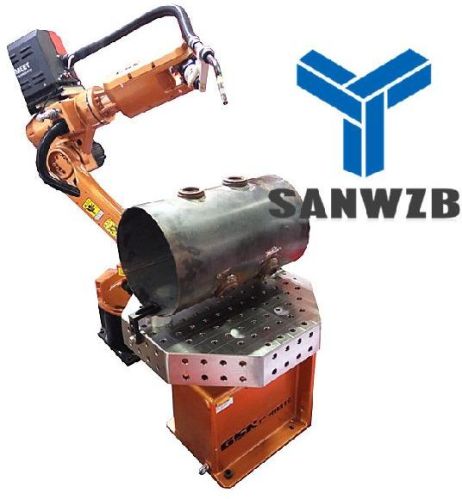

Contact SupplierOctagonal Welding Table
Â
Features: Compatibility strong, high stability, Accuracy guarantee, high price ratio, worked with positioner machine to consist of robot welding workstation.
Â
Tech Parameter:
1. Octagonal Welding Table
1) Flatness:0.15 mm / m 2; Verticality:0.15 mm / m
2) Materials: Steel (alloy steel Q 345), heat Treatment to annealing internal stress.
3) Holes distance tolerance within 0.05 Mm
2. Requirements of accessories:
1) Positioning Parts: Material: 45 #, Flatness0.2 mm / m 2, Verticality0.15 / 200 mm, Parallelism0.20 / 200 mm
2) Locking Parts: Material: 45 #, Locking Force1.2 T, Hardness after anneal: HRC 32 - 35; Hardness of steel ball: HRC 58 - 62
3) Clamping Parts: Material: 45 #, annealing Treatment
| Octangnal Welding Table | D28 Series | D16 series | ||
| 800x800x200 | Swk28-12001 | 600x600x100 | Swk16-12001 | |
| 1000x1000x200 | Swk28-12002 | 800x800x100 | Swk16-12002 | |
| 1200x1200x200 | Swk28-12003 | 1000x1000x100 | Swk16-12003 | |
| 1500x1500x200 | Swk28-12004 | 1200x1200x100 | Swk16-12004 | |
| 2000x2000x200 | Swk28-12005 | |||
