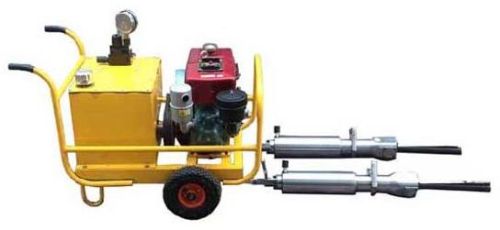

Rock Hydraulic Splitting Machine, Stone Hydraulic Splitting Machine

The hydraulic rock splitter machine uses the high-pressure hydraulic oil generated by the power station as the energy source, and the rock splitter is transported to the cylinder tube of each splitting machine through the oil pipe to control the pushing and contracting of the piston rod in the hydraulic splitting machine. And cleverly applied the wedge principle, the meteorite force reaches several hundred tons or even thousands of tons, any object has its own characteristics, rock and concrete have a very high external compressive strength, and from the inside out The tensile strength is small, and the compressive and tensile strength are in a brittle state. The splitting machine captures the brittle nature of the rock and the concrete, and is designed using the wedge principle. Parameter: Splitter: Model No. Drilling diameter Drilling depth Split block length Theory splitting force The actual splitting force Weight Crack width (mm)D (mm)L (mm)D (T) (T)  (kg)   (mm) HW80-150 Φ38-42mm ≥450mm 150 600 450 25 10--30 HW90-250 Φ40-42mm ≥550mm 250 680 480 30 10--30 HW90-350 Φ42-46mm ≥650mm 350 700 500 33 10--30 HW100-350 Φ46mm ≥750mm 350 780 600 35 10--30 Technical data of Diesel engine Power model  overall size(mm) Weight(kg) Oil pumping station reserves(L) Engine Power  Working pressure(MPa) flux(L/m) Towable of splitter quantity(pc)  Diesel engine 1150*1180*940 260 40 5.15KW 55-60 2-13 1-10 Technical data of Gasoline engine
