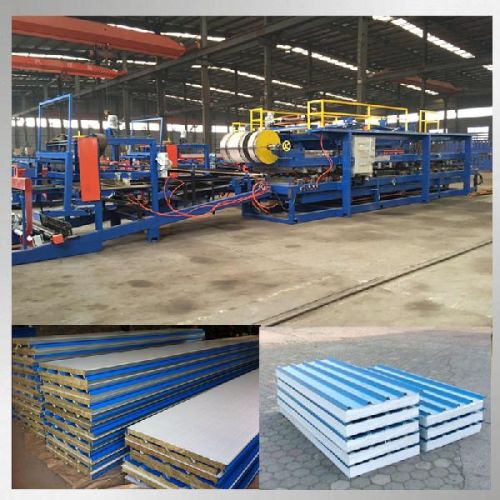

Rock Wool Sandwich Panel Making Machine

rock wool sandwich panel making machine
EPS& Rock Wool Sandwich Panel Making Machine including unwinding, before cutting, film, beading molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automaticcontrol system, userfriendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.
EPS&rockwool sandwich board production line production Process:
(The upper)Dncoiler ---Cutting ---Film---Beading---Roll forming
--Rock wool delivery--Glue--Sealing side foam-- laminating machine with Foam,Solidify,Roll forming--Cutting --Run-out table
(Lower part)Uncoiler ---Cutting →Film→Beading→Roll forming
Parameters of sandwich panel roll forming machine :
Raw material
Coil thickness:0.4~0.6mm
Coil weight:Max 5T
Coil width: Max 1250mm
Coil inner diameter:ø508mm
Un-coiler
Bear weight:5T
Mandrel expan
