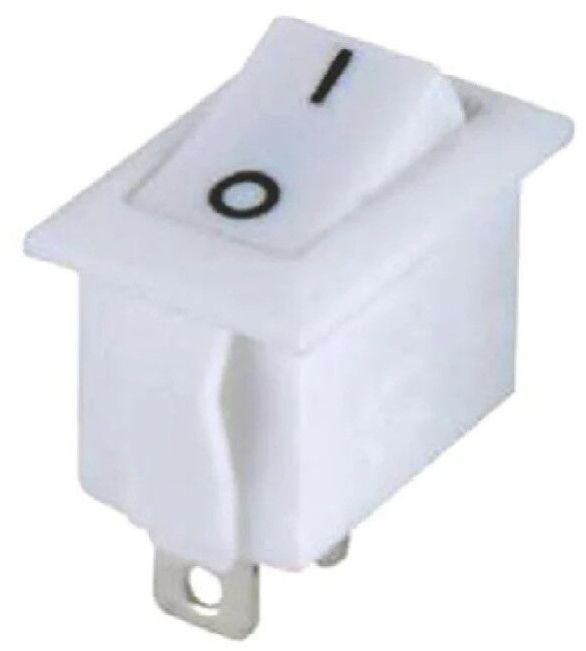

Mli Terminals Quality: Iron Rocker Switch 12 2 Pin White

₹ 3 / piece

MOQ1000 piece
MaterialTerminals Quality: Iron, Copper MATERIAL PLASTIC,copper iron
Brand NameMLI
ShapeSquare
DesignStandard
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 3 Years
Nature of Business Supplier
GST No. 07GXHPS1420Q1ZW

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameMLI
MaterialTerminals Quality: Iron, Copper MATERIAL PLASTIC,copper iron
ShapeSquare
DesignStandard
ConditionNew
UsagePower Strips, Toys, Stabilizers, Automobiles, USB Hubs
Number Of Flowerrs 12 rocker switch

The KCD5-101 is a small sub-mini rocker switch with an ON-OFF operation and a contact configuration of SPST. It has a rating of 6A 125VAC/3A 250VAC, a contact resistance of 50mOhm max, and an insulation resistance of 100mOhm min (500VDC). The switch is made with a nylon 66 housing and brass terminals, and is available in black, red, white, and other button colors. Its housing color is standard black, but other colors are also available. The switch has a dielectric strength of 1500VAC for 1 minute, an operating temperature range of -25C+85C, and an electrical life of >= 10,000 cycles.

Available in Brass & Iron

Switch Function	ON/OFF
Usage/Application	Power Strips, Toys, Stabilizers, Automobiles, USB Hubs, Massage Chairs, Dehumidifiers
Model Name/Number	KCD5-101-W
Material/Body	Plastic
Illuminated	Non Illuminated
Switch Throw Type	SPST
Color	White

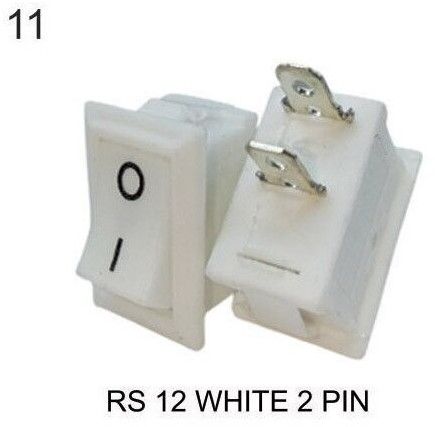

FAQs of RS 12 WHITE 2 PIN:

Q: What is the material used in RS 12 WHITE 2 PIN?A: The material used in RS 12 WHITE 2 PIN is copper.
Q: What is the maximum voltage that RS 12 WHITE 2 PIN can handle?A: RS 12 WHITE 2 PIN can handle a maximum voltage of 250V.
Q: What is the mechanical life of RS 12 WHITE 2 PIN?A: The mechanical life of RS 12 WHITE 2 PIN is 5 years.
Q: What is the maximum current that RS 12 WHITE 2 PIN can handle?A: RS 12 WHITE 2 PIN can handle a maximum current of 6 AMP.
Q: What is the color of RS 12 WHITE 2 PIN?A: The color of RS 12 WHITE 2 PIN is white.
