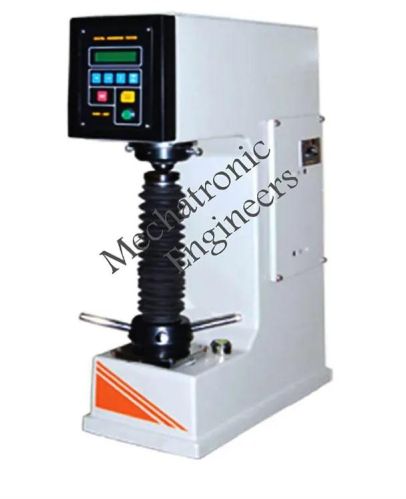

Rockwell Hardness Testing Machine

Listing ID #6773418

Get Latest Price

MOQ 1 Piece
Size of Base171 x 423 mm
Net Weight (Approx.)75 kg.
Machine Height635 mm
Depth of Throat200 mm
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Loads 60, 100 & 150 kgf
Max. Depth of elevating 240 mm
Net Weight (Approx.) 75 kg.
Machine Height 635 mm
Max. Testing Height 230 mm
Drive Motor 0.33-415v/p HP
Depth of Throat 200 mm
Initial Load 10 kgf
Size of Base 171 x 423 mm

Model ME-RAS Digital

Digital Hardness Tester for Rockwell tests. Motorized for automatic operation cycle i.e. load / dwell / unload.
Preliminary Test Force – 98.07N (10 kgf.)
Additional Test Force – 490.3, 882.6, 1373N (50, 90, 140 kgf.)
Total Test Force – 588.4, 980.7, 1471N (60, 100, 150 kgf.)
Test Force selection by external dialing.
Set position with LED bar indicator for easy operation.
Keyboard entry through reliable membrane switches for scale / GO-NOGO / dwell time selection.
Large size scale display for easy reading with 0.1 Rockwell resolution.
Parallel output for connecting dot matrix printer to get results indicating a serial number of tests, hardness scales, hardness value, and high/good / low indication.

Standard Accessories

Testing table 200 mm	1 PC
Testing table V groove 70 mm	1 pc
Ball Holder 1/16 mm	1 pc
Test Block HRB	1 pc
Test Block HRC	1 pc
Allen Spanner	4 pcs
Instruction Manual	1 Book

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

We are a renowned manufacturer & exporter of Material Testing Machines which are demanded across India, Gulf Countries, East Asia & All over world. We are working with some reputed & prestigious organizations in India & abroad, Defense Lab / Research Institute, Metallurgical Labs, Steel Industries & Engineering Colleges etc. Our Machines are appreciated by clients like Bajaj Auto, Pune, Larsen and Toubro Limited, Powai, Mumbai, Sugar Corporation of Uganda Limited, Uganda (South Africa), Shattaf Steel Limited, Sharjah (UAE), Global Lab, Mumbai and many Engineering Colleges in India and Abroad
With rich experience of 11 years in the domain of Material Testing Machines, we are offering Universal Testing Machines, Tensile Testing Machines, Hardness Testing Machines, Impact Testing Machines, and Spring Testing Machines. However, we also meet client requirements of our clients for various machines such as, Torsion Testing Machines, Balancing Machines, Conversion/Retrofitting Services, Compression Testing Machines and Special Purpose Machines. It is owing to the distinguishing attributes of our Material Testing Machines that our range is widely demanded in steel, automobile, aluminum, & copper industries, and also in foundries and steel rolling mills.
Broadening our spectrum of services, we undertake up gradation of ZD, Instron, Zwick and any other make machines. In addition, we undertake any kind of development & special purpose machine calibration in testing field. Our clients can avail from us fully customized software of various machines as per their requirement. We are offering electronic packages for UTM & TTM with strain gauge type electronic extensometer, windows based fully user-friendly interactive software for evolution of 0.1, 0.2, and 1.0% proof stress value to our clients.
Product Range…
 Universal Testing Machine: 10T, 20T, 40T, 60T, 100T. (Mechanical / Electronic / Computerized)
 Tensile Testing Machine: 2T, 2.5T, 5T (Mechanical / Electronic / Computerized)
 Hardness Testing Machine: All Types & all Models of Rockwell, Vickers, Brinell
 Impact Testing Machine: All Types & all Models
 Spring Testing Machine
 Torsion Testing Machine
 Conversion of any mechanical Universal Testing Machine (UTM) &
 Tensile Testing Machine (TTM) to electronic computerized m/c
