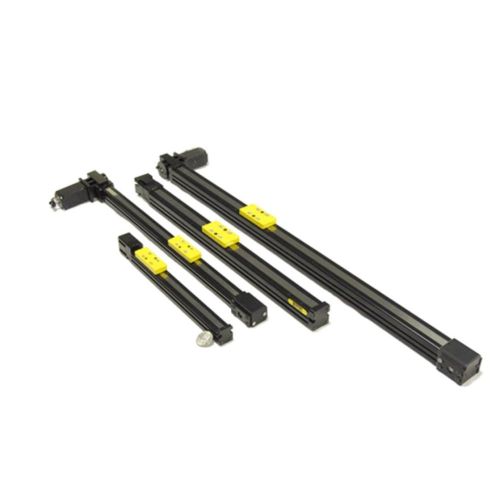

RODLESS LINEAR ACTUATOR

The LCR 30 Belt is a value driven linear actuator which is ideal for OEM applications, moving light payloads of up to 90N at high speeds. The LCR 30 is ideal for OEM's looking for a miniature actuator as it measures just 30 millimeters in width
The LCR (Light Capacity Rodless) Belt is a miniature linear actuator that has been design to answer the needs of OEM instrument builder. Due to its design, the LCR is the ideal mechanical positioner for applications in the life science space requiring a high quality, miniature, and easy to use rodless linear actuator. Flexible sizes, drive train types, bearings and strokes make it the ideal building block to base an instrument design around.
The LCR Belt is ideal for applications requiring electronic control of light payloads and high throughput. This make the LCR Belt drive ideal for applications in analytical instruments, laboratory automation, micro titer automation, and liquid handling. The LCR is also applicable to general purpose applications moving light payloads, and basic repeatability for point of purchase kiosks, part shuttling, and even conversion from rodless pneumatics to electric automation.
LCR 30 Belt Driven, Rodless Linear Actuator Features:
• Profile Width : 30mm
• Maximum payloads of 90 N
• Maximum thrust of 45 N
• Travel lengths up to 1000 mm
• Maximum speeds up to 870 mms
• Positional repeatability of +- 0.2 mm
• Integrated drive belt and guidance system
• Square rail and glider bushing bearing options
• Integrate home and limit sensing
• Dovetail grooves for toe clamp mounts
