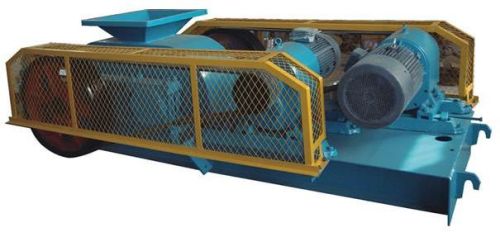

Roll Crusher

We are offering roll crusher.
1. Brief introduction of roll crusher
roll crusher (or roller crusher) is used for middle crushing and fine crushing of all kinds of ores and rocks under mid-hardness in mine, chemical industry, cement, building materials and other industrial sections. This crusher has simple structure and can be operated conveniently. Ideal product size depends on adjusting space between two rollers.
2. Working principle of roll crusher
roll crusher is made up of two cylindrical rolls which are installed horizontally. the two rolls rotate in different directions, materials fall on top of the rollers and enter crushing chamber under the action of roll surface friction to be crushed by the rollers, and the final product is discharged from outlet. the crushing process is continuous. the crusher has strong discharging force, so even wet materials can also be discharged.
3. Features and benefits of roll crusher
1. the two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls.
2. Some major advantages of roll crushers are they give a very fine product size distribution and they produce very little dust or fines.
3. Coal plants will use roll crushers, either single roll or double roll, as primary crushers, reducing the rom coal. Usually, these crushers will have teeth or raised forms on the face of the roll.
4. Structure of roll crusher
consists of the housing, rolls, deep tooth gear and safety spring, also has double motors and double belts to drive. V-belt drives two rolls to rotate in opposite direction by motors and finish material crushing. Space of rolls can be adjusted within certain range to control discharging size.
5. Main technical parameters of roll crusher
model
2pg400× 250
2pg610× 400
2pg450× 500
2pg600× 750
2pg900× 900
2pg900× 1200
diameter of roller(mm)
400
610
450
600
900
900
length of roller (mm)
250
400
500
750
900
1200
max. Feeding size (mm)
≤25
≤85
≤100
≤100
≤150
≤150
dischargingsize (mm)
2—8
2—30
2—25
2—30
2—40
2—40
capacity(t/h)
5—10
13—40
20—55
60—125
35-100
45-130
roller number
2
2
2
2
2
2
weight(t)
1.1
3.5
3.8
8.34
15.3
18.5
power (kw)
5.5x2
15x2
11x2
22x2
30x2
45x2
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
