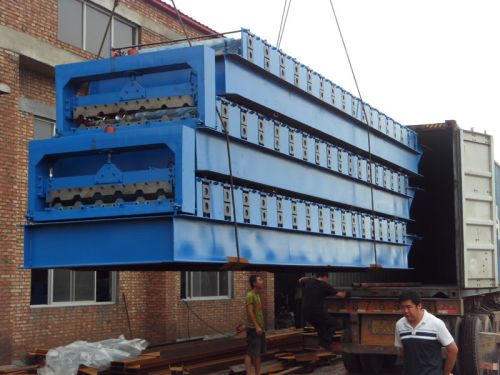

Roll Forming Machine

We are offering roll forming machine
main forming machine
number of forming steps: 17 stations
material of shaft: 45# steel hardening and tempering treatment. Outer diameter 75mm
material of rollers: 45#steel, plating hard chrome on the surface, rigidity hr55â°-57â°
main motor power: 4 kw
the forming speed: 8-10m/min
the plating chromium�s thickness on the surface of rollers: 0.05mm
material width: 1220mm thickness of the steel: 0.3-0.1 mm
effective width after forming:945mm
wall plate thickness:14mm
chains:1 inch
main stand:350# h steel
dimension of the machine:9mx1.4mx1.2m
weight of the machine:5000kg
hydraulic cutter
material of blade: cr12 mould steel with quenched treatment 60-62
cutting system: adopt advanced hydraulic drive, automatically cutting after forming, no distort, no wasting, high safe factor.
The electrical control system (with transducer)
display: textscr delta plc with transducerï¼�keep tolerance withinâ±2mmï¼�
� encoder: �rui pu� or �xin ya� (wu xi)
� frequency converter: �delta
� controlling screen : liquid crystal display(text panel)
� electric relay : delixi jqx-13f2z
� circuit breaker: delixi
hydraulic system
adopting advanced hydraulic system
power: 3 kw
