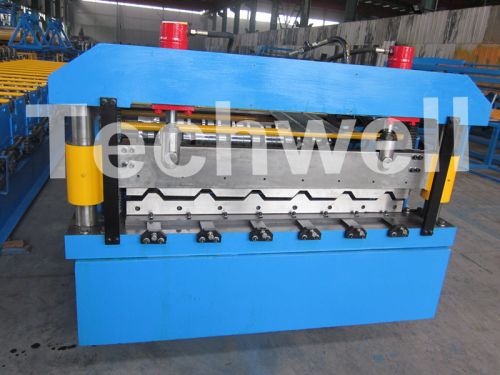

Roll Forming Machine, Roof Sheet

We are offfering roll forming machine, roof sheet.
machine: tw-7007 roof tile roll forming machine, roof tile forming machine, roof sheet forming machine, roof panel forming machine, roofing sheet forming machine
a) technical data
1. Decoiler: manual decoiler
2. Weight capacity of decoiler: 5 ton
3. Main motor power: 5.5 kw
4. Hdraulic motor power: 2.2 kw
5. Roll stand: 15
6. Raw material width: 1000mm, 1200mm ( or according to customers requested )
7. Thickness of raw material: 0.3-0.8 mm
8. Necessary covered width: 820, 1025mm ( or according to customers requested )
9. Machine frame stand: welded structural steel
10.thickmess of fame steel: 18mm
11. Type of forming machine: single station with chain transmission
12. Material of roller: high grade 45# forge steel, polished and coated with 0.05mm chrome surface.
13. Transporting type: chain transmission
14. Material of chain: high grade 45#, heated and quenched hrc 45-50
15. Main axis material: high grade 45#
16. Axis diameter: 75mm
17. Working speed: 10-15 m/min
18. Voltage: 380v, 3 phase 50hz ( or according to customers local requirement )
19. Material of blade: c r 12
20. Heat treatment of cutting blade: hrc 50-60
21. Type of cutting: hydraulic cutting
22. Electrical control: plc frequency control system with touch screen
b) work flowing
hydraulic decoiler --- fedding guide --- roll forming --- cut-to-length --- run out table
c) equipment
decoiler, feeding guide, main roll forming machine, hydraulic cutting device. Hydraulic station, plc computer control, output table
