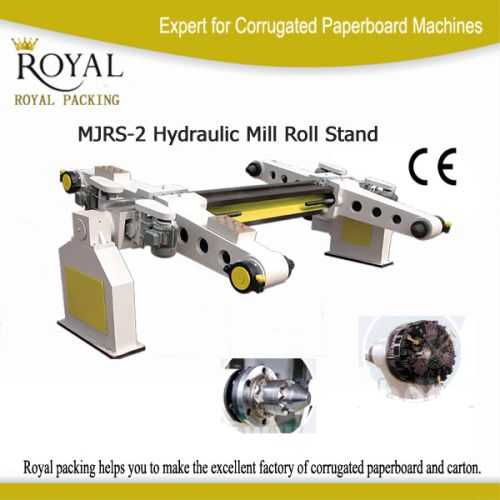

Roll Stand

1) the structure is symmetrical, can load two rolls raw paper at the same time, can change the paper roll without stop the machine. The tighten, loosen, up and down, move for center, left and right moving all use electrical control.
2) effective working width: 1600mm, 1800mm,2000mm, 2200.
3) max. Raw paper diameter: ø1400mm
4) min. Raw paper size: ø400mm×900mm
5) max. Load of single arm: 1500kg.
6) each roll sand has two paper roll sending rails, two paper roll up dolly. Rail is made from the welding of the 12# channel steel and direction-leading pole. The dolly is made from 12# channel steel, the length of the rail is 4500mm.
7) use disk model brake, have handle and electrical models. (can choose.)
