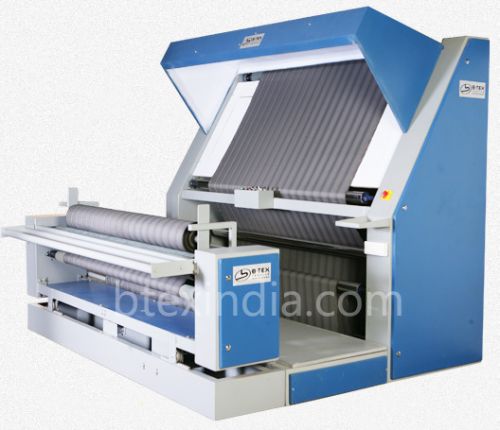

Roll To Roll Fabric Inspection Machine - B

Benefits
defects and incorrect sizes are easily and rapidly discovered.
Suitable for all types for fabric including heavy and technical material.
Reduces fabric waste to minimum and guarantees only high quality fabric is delivered.
Tensionless handling of fabric focuses on fabric care.
Works fast, efficient and requires only one operator.
Produces straight and presentable fabric rolls.
Tailor-made size from 2000 mm to 6500 mm
features
fabric inlet from roll or flat fold form
fabric outlet in roll form
adjustable fabric tension
auto-stop at feed, if machine running out of fabric
laminated inspection table
top & bottom lights
length counter meter for fabric length measurement
sensor type edge guiding for presentable roll (no air or oil required)
full length reversing for rechecking with jog/inching operation
s.s. Scroll roller for creaseless fabric roll
adjustable roll compactness
dancing roller mechanism for multi drive synchronisation
guide rollers with smooth finish
wooden platform for operator
a.c. Inverter drive with in-built software (low electricity consumption)
imported rubber emery on winding roll for extra life
variable speed from 0 - 60 meter/min.
Italian geared-motors on all positive driven rolls
utility tray and single phase switch box is provided
safety sensors and emergency stop is provided
