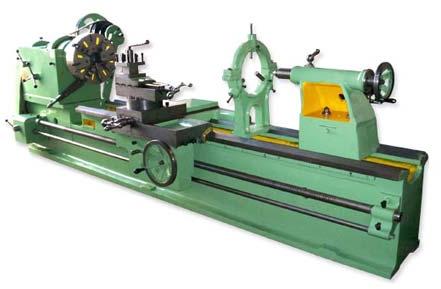

Our Roll Turning Machine is Used for Proof and Finish Machining of Rolls for Rolling Mills, Cement Plants, Paper Plants & Heavy Industries. These Heavy Duty Roll Turning Lathes Possess High Rigidity Which, in Conjuction Has Sufficient Power Drive to Enable Carbide Tipped Tools to Be Used to Their Full Capacity. the Roll Turning Lathe Machine is Usually Equipped with Several Carriages and Special Steady Rests Which Allow the Matting Rolls to Be Set Up. There is also a Provision for Electric Drive of Feed Gear Boxes in Addition to the Standard Manual Process. for all this and Above, We are Reckoned to Be One among the Leading Heavy Duty Roll Turning Machine Exporters from the Country.
| Length of Bed (mm) | 3000 | 3500 | 4500 | 5000 | 6000 | 7500 | 9000 |
|---|---|---|---|---|---|---|---|
| Width of Bed (mm) | 450 | 500 | 500 | 500 | 500 | 650-1625 | 650-1625 |
| Height of Centre (mm) | 400 | 445 | 445 | 460 | 460 | 525-1400 | 525-1400 |
| Spindle Hallow (mm) | 80 | 90 | 90 | 105 | 115 | 130 | 130 |
| Total Width of Gap (mm) | 380 | 510 | 510 | 510 | 510 | 600 | 600 |
| Width-of ? Gap in front of face plate (mm) | 280 | 410 | 460 | 460 | 460 | 510 | 510 |
| Swing over Saddle (mm) | 600 | 660 | 660 | 690 | 690 | 760-2250 | 760-2250 |
| Swing in Gap (mm) | 1325 | 1525 | 1525 | 1575 | 1575 | 1675-3250 | 1675-3250 |
| Admit between Centre (mm) | 1600 | 2000 | 3000 | 3000 | 4000 | 5000 | 6000 |
| Lead Screw Dia (mm) | 55 | 60 | 65 | 65 | 65 | 65 | 70 |
| Feed Shaft Dia (mm) | 30 | 30 | 30 | 35 | 38 | 40 | 40 |
| Approx. Weight (mm) | 3 | 4 | 45 | 5 | 7 | 8-15 | 10-20 |
| H.P. Required (H.P) | 3 | 5 | 5 | 5 | 5 | 7.5 |
