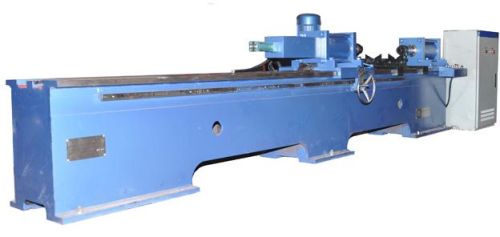

Roller Automatic Installation Machine

₹ 9.85 Lakh / Piece

MOQ1 Piece(s)
Press-fit roller length200~2200mm 200~2600mm
Press-fit roller diameterΦ89~Φ159 Φ89~Φ219
Hydraulic motor power system5.5 kW
Machine Center High790mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2011

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Equipment Dimensions4200×820×920mm
Hydraulic system pressure1.5~4MPa
SpecificationsTYJ-16×220 TYJ-22×260
Maximum compressive loading force6000Kgf
Press-fit roller diameterΦ89~Φ159 Φ89~Φ219
Press-fit roller length200~2200mm 200~2600mm
Hydraulic motor power system5.5 kW
Machine Center High790mm
Two press-fit spindle concentricity error≤0.1mm

First, the use and characteristics of the equipment
This product is a conveyor roller assembly fitted with a semi-automatic hydraulic pressure equipment, suitable for a variety of domestic production (cast iron housing, stamping and welding bearing) idler assembly. Work, artificial feeding, double press-fit, can cast iron housing, bearings, seals, dust cover for standalone repeatedly press fit. The reliable and practical machine, high efficiency, suitable for high-volume assembly idlers.
Second, the product is suitable for the conditions
This product is suitable for not more than 1000 meters above sea level, the ambient temperature 0 ~ 40 , no dust and a variety of corrosive media applications.
Third, the main technical parameters
