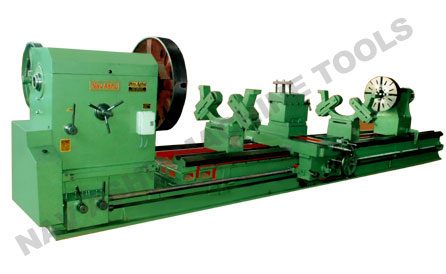

Contact SupplierThe Roller Regrooving Lathe Machine manufactured by "Nav Ashu Machine Tools" is widely used in sugar mill, rolling mill, paper mill, rubber rolls etc.
Bed Length Ft. | 4½' | 6' | 8' | 10' | 12' | 14' | 16' | 18' | 20' | 22' | 24' | 30' | 36' | 40' |
Width of Bed | 12" | 14" | 16" | 18" | 20" | 22" | 24" | 26" | 28" | 30" | 32" | 36" | 40" | 48" |
Height of Centre | 10" | 12" | 14" | 16" | 18" | 20" | 22" | 24" | 26" | 28" | 30" | 34" | 38" | 46" |
Spindle Bore | 2½" | 3" | 3" | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" |
Swing in Gap | 32" | 36" | 42" | 52" | 55" | 60" | 68" | 72" | 76" | 80" | 84" | 92" | 100" | 116" |
Swing Over Bed | 20" | 24" | 28" | 32" | 36" | 40" | 44" | 48" | 52" | 56" | 60" | 68" | 76" | 92" |
No. of Spindle Speed | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Admit Between Centre | 30" | 38" | 54" | 72" | 96" | 120" | 138" | 150" | 174" | 198" | 222" | 294" | 354" | 402" |
Leading Screw Dia | 1¼" | 1½" | 1½" | 1.3/4" | 2" | 2" | 2½" | 2½" | 2.3/4" | 2.3/4" | 3" | 3" | 3½" | 4½" |
H.P. Required | 2 | 2 | 2 | 3 | 3 | 3 | 5 | 5" | 7½ | 10 | 15 | 20 | 25 | 25 |
