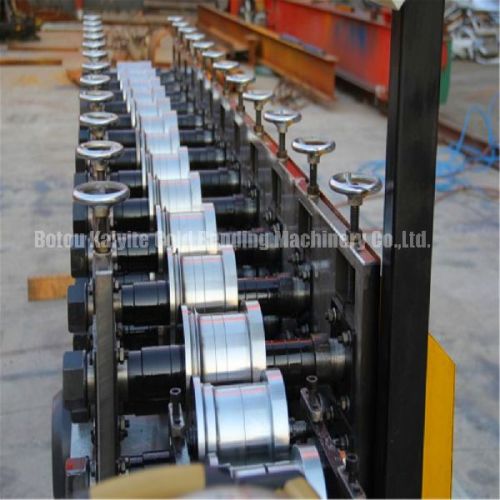

Roller Up Shutter Door Making Machine

Roller Up Shutter Door Making Machine With PLC The features of the roll forming machine are easy installation, recycleuse and low cost . Because of these , the shutter door is widely used in theconstruction such as the door of exhibition centers , villages , and houses,shops ect. In future , it will be more and more popular. Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand 1. Roll shutter door forming machine can prevent rainwater infiltrated2. Fire resistance rolling shutter door also have function of fireproof3. High efficiency, energy saving, can be used continuously4. Roll shutter door forming machine use PLC and inverter controller5. The straightening device of this roller shutter door roll forming machine can be adjusted to decrease phenomenon caused in the process of roll forming. Technical parameters: Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness :  0.3---0.8mm Material width : 100 - 160 mm(according to the profile) Diameter of shaft : 75 mm Roller Station : 10 - 15 steps Sidewall Thickness : 14 mm Main frame :400 H steel Motor Power : 4 + 3 kw Forming speed : 10 -  20mmin In order to help you know our machine much better. The following is the detailed pictures of the machine. Forming rollers Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating
