Rolling Machine, Packaging Type : Ice Grey

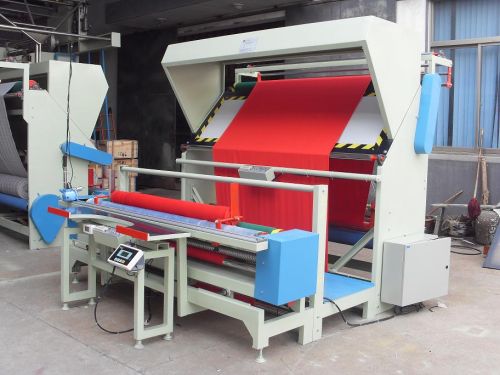

We are offering cloth inspection and rolling machine.
description of pl-b cloth inspection and rolling machine
usage:cloth inspection and rolling machine is special designed for inspecting and rolling up and counting length for all kinds of cotton,knitted,woven,printed,plush fabric and tricot fabrics etc
characteristics
1.phototelectric hydraulic edge-alignment system is adopted.power 1/2hp
2.fabric tension is adjustable via inverters,no shrink of fabric width.
3.equipped with an sprial expanding roller to eliminate curled edge.expanding power 1/2hp.
4.speed of main motor is managed by two inverters.power 1/2hp
5.digital counter could make accurate measurement of length in yards or meters which can be interchanged
6.winding roller and feeding roller are driven by gear motor.power 1hpx2sets
7.impoted special foamed winding toller could rol up warp and weft knitted plush and short floss without sliding movement and untidy edge.fabric rolls are neither too tight nor too loose.
technical parameters
1.fbair width:1800-3600mm
2.diameter of fabric rolls:
