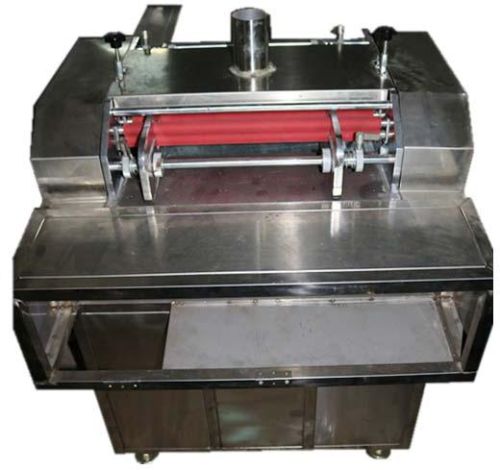

Rolling Shear Machine

With desire to cement our reputation in the market, we are engaged in the finest quality Aluminum substrate V-CUT. The machine suitable for cutting unlimited length of aluminum board and Fibre board. The aluminum PCB cutting machine effectively reduces stress and also prevents solder chap from PCB separation. High quality blade and small cutting force ensures long life of blade. Cutting process is smooth and can locate v cut very well to avoid v-cut jumping out. In the process can guarantee the aluminum plate without deformation and damage. So, for Aluminum board, the machine is the best choice.
Attached:
A washer, ten guard plate bearings, one wrench of each size(big and small), a set of hexagon wrench, a knife rest, and 4 V-CUT blades.
Features
. Free training to operation and maintenance workers
. Horizontal fixed, easy operate and adjust.
. High quality components
TECHNICAL PARAMETER
Type 380-VR 480-VR
Production length 70-380mm 70-480mm
Material thickness 0.6-2.0mm 0.8-3.2
Speed 8m/min 8m/min
Paper board v cut 10grooves(both up and down) 10 grooves(both up and down)
Aluminum substrate v cut 5grooves(both up and down) 4groove(both up and down)
Fibre board v cut 8 grooves (both up and down) 8 grooves(both up and down)
Our major products include
Vertical Type electric saw, Rolling shear, Automatic edge grinding machine, Optical inspection machine, Chamfering machine, Chamfering machine for Thin Plate, Removal burr machine, Pin machine, Semi automatic ring machine, Four axis plate drilling machine, Fully automatic two-way V-CUT machine with double heads and multi blade, Fully automatic single-way V-CUT machine, Aluminum substrate V-cut machine, Ordinary V-CUT machine, Cleaning machine ,Brown film developing machine .
