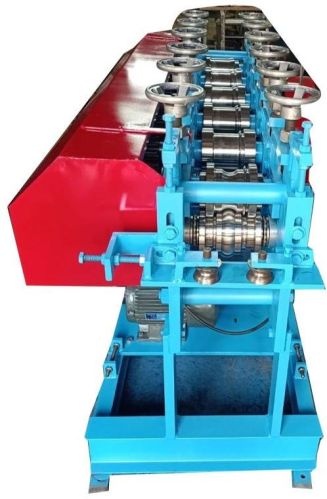

High Pressure 5 HP Mild Steel Electric Rolling Shutter Patti Machine, For Industrial, Voltage : 440v

Name: Rolling Shutter Patti Machine
Brand: PMT
Price: 356000 INR
Availability: InStock

₹ 3.56 Lakh / Piece

Company Information

4.0/5

(1)

Ask for more detail from the seller

Report incorrect details

Specifications:

Machine constructed from steel
Machine fitted with a number of rolls with forming dies on its end, through which a cut strip is passed
In a single pass, the desired strip is formed, suitable for making rolling shutters
Drive of the machine through machine cut gears
necessary guides and supports are provided for the strips to pass through rolls
Coil roll can be loaded
6 Station Machine for making One profile, 7 Station Machine for making Two profiles, 8 Station Machine for making Three profiles of Rolling Shutter Strips / Slats

Specifications

Model:	PMT-4.5/LD	PMT-4.5	PMT-5.0/LD	PMT-5.0	PMT-6.0/LD	PMT-6.0
Capacity - Width of Strip:	4.5" / 115 mm	4.5" / 115 mm	5.0" / 127 mm	5.0" / 127 mm	6.0" / 152 mm	6.0" / 152 mm
Capacity - thickness of sheet (mm):	0.4 to 0.9	0.7 to 1.2	0.4 to 0.9	0.7 to 1.2	0.4 to 0.9	0.7 to 1.2
Capacity - Max. length:	no limit	no limit	no limit	no limit	no limit	no limit
Size of formed rolling strip (round type):	3" / 76 mm	3" / 76 mm	3.35" / 85 mm	3.35" / 85 mm	3.75" / 95 mm	3.75" / 95 mm
Number of Rolls:	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs
Machine Speed (Feet / Minute):	20	20	20	20	20	20
Machine Speed (Meters / Minute):	6	6	6	6	6	6
Motor (HP):	5	5	5	5	5	7.5
Net / Gross Weight (kgs.):	950 / 1300	950 / 1300	1100 / 1450	1100 / 1450	1200 / 1600	1200 / 1600
Dimensions (m):	2.0 x 1.4 x 1.1	2.0 x 1.4 x 1.1	2.2 x 1.5 x 1.2	2.2 x 1.5 x 1.2	2.5 x 1.6 x 1.4	2.5 x 1.6 x 1.4
Shipping Volume (m3):	4	4	5	5	6	6
