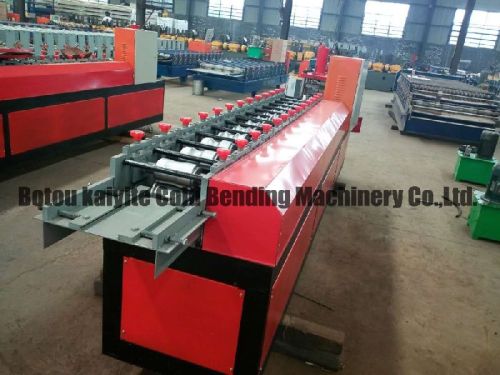

Rolling Shutters Making Machinery

Rolling Shutters Making Machine The shutter doorproduced by the rolling shutters making  machine is widely used on the factory , warhouse, garage , ect becauseof its advantage of easy installation , beauty, short building and lightweight . We can design the machine for you according to your drawings . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand 1. Roll shutter door forming machine can prevent rainwater infiltrated2. Fire resistance rolling shutter door also have function of fireproof3. High efficiency, energy saving, can be used continuously4. Roll shutter door forming machine use PLC and inverter controller5. The straightening device of this roller shutter door roll forming machine can be adjusted to decrease phenomenon caused in the process of roll forming. You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness :  0.3---0.8mm Material width : 100 - 160 mm(according to the profile) Diameter of shaft : 75 mm Roller Station : 10 - 15 steps Sidewall Thickness : 14 mm Main frame :400 H steel Motor Power : 4 + 3 kw Forming speed : 10 -  20mmin In order to help you know our machine much better. The following is the detailed pictures of the machine. Forming rollers
