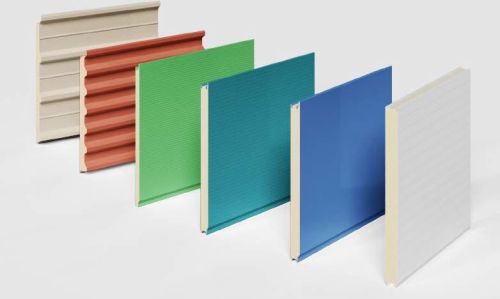

EIP Roof and Wall Panels are composite prefabricated panels, consisting of two layers of metal facers and PUR/PIR insulation core between the facers.
EIP panels are versatile cladding products, allowing for use in: Roofs, External Walls and Partitions
Panel thicknesses available range from 50 to 200mm, capable of meeting and exceeding local building regulation requirements.
Â
Please contact EIP technical team for selecting the correct design for your slope
2 Based on 0.50mm thick facers
3 Based on 0.70mm thick outer and 0.50mm thick inner facers
4As per foam laboratory values
*Consult factory for improved values with different foam systems
Â
The core of EIP panels is an environmentally sustainable rigid PUR/PIR insulation foam.
available in,
having properties as,
The blowing agent used in EIP panels is environmentally friendly pentane gas with Zero Ozone Depletion Potential (ODP) and Low Global Warming Potential (GWP). It does not contain CFC or HCFC.
1 As per foam supplier's laboratory values.
TRP 40/333 panels minimum length is 2.00m and maximum length is 18.00m
| t: Core Thickness (mm) | 50 | 60 | 75 | 100 | 150 |
|---|---|---|---|---|---|
| Weight - Steel (kg/m2)2 | 10.70 | 11.10 | 11.70 | 12.70 | 14.70 |
| Weight - Aluminum (kg/m2)3 | 5.80 | 6.20 | 6.80 | 7.80 | 9.80 |
| U value - PIR (W/m2K)4 | 0.36 | 0.31 | 0.25 | 0.19 | 0.13 |
| U value- PUR (W/m2K)4 | 0.40 | 0.34 | 0.28 | 0.21 | 0.14 |
